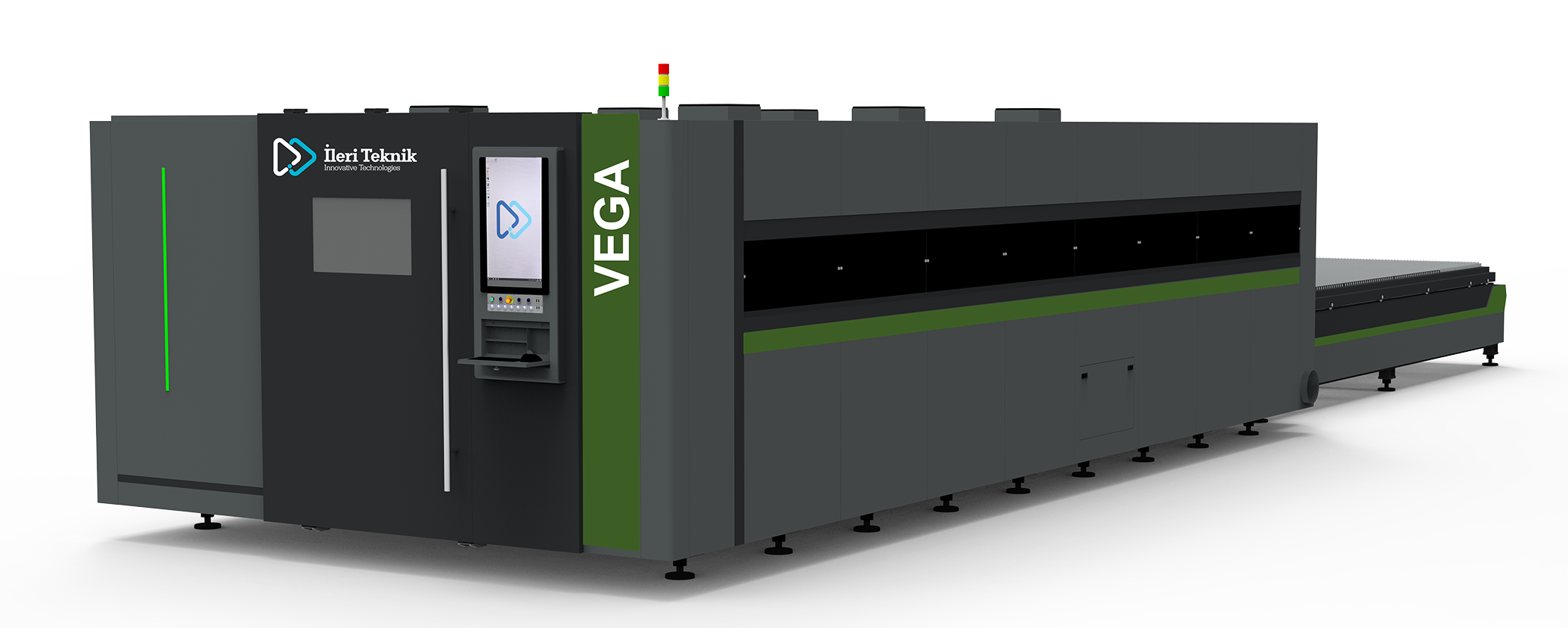

VEGA Plate Laser Cutting Machines
VEGA Plate Laser Cutting Machines
Product Overview
Upper mid-range fully enclosed fiber laser cutting machine
Product Features
-
Upper mid-range fully enclosed fiber laser cutting machine
-
Exchangeable dual table for high production efficiency
-
Dual-drive gantry structure for high speed and precision
-
Reinforced machine structure with high-quality components
-
Industrial solution balancing performance and cost
Product Specification
| Specification | VEGA 3015 | VEGA 4020 | VEGA 6025 |
|---|---|---|---|
| Work Area | 3000×1500 mm | 4000×2000 mm | 6000×2500 mm |
| Max. Speed | 100 m/min | 100 m/min | 100 m/min |
| Max. Acceleration | 1.0G | 1.0G | 1.0G |
| Positioning Accuracy | ±0.05 mm/m | ±0.05 mm/m | ±0.05 mm/m |
| Repeat Positioning Accuracy | ±0.03 mm | ±0.03 mm | ±0.03 mm |
| Allowable Loading Weight | ≈1500 kg | ≈2500 kg | ≈5000 kg |
| Applicable Power | 3kW, 6kW, 12kW, 20kW | 3kW, 6kW, 12kW, 20kW | 6kW, 12kW, 20kW, 30kW |
