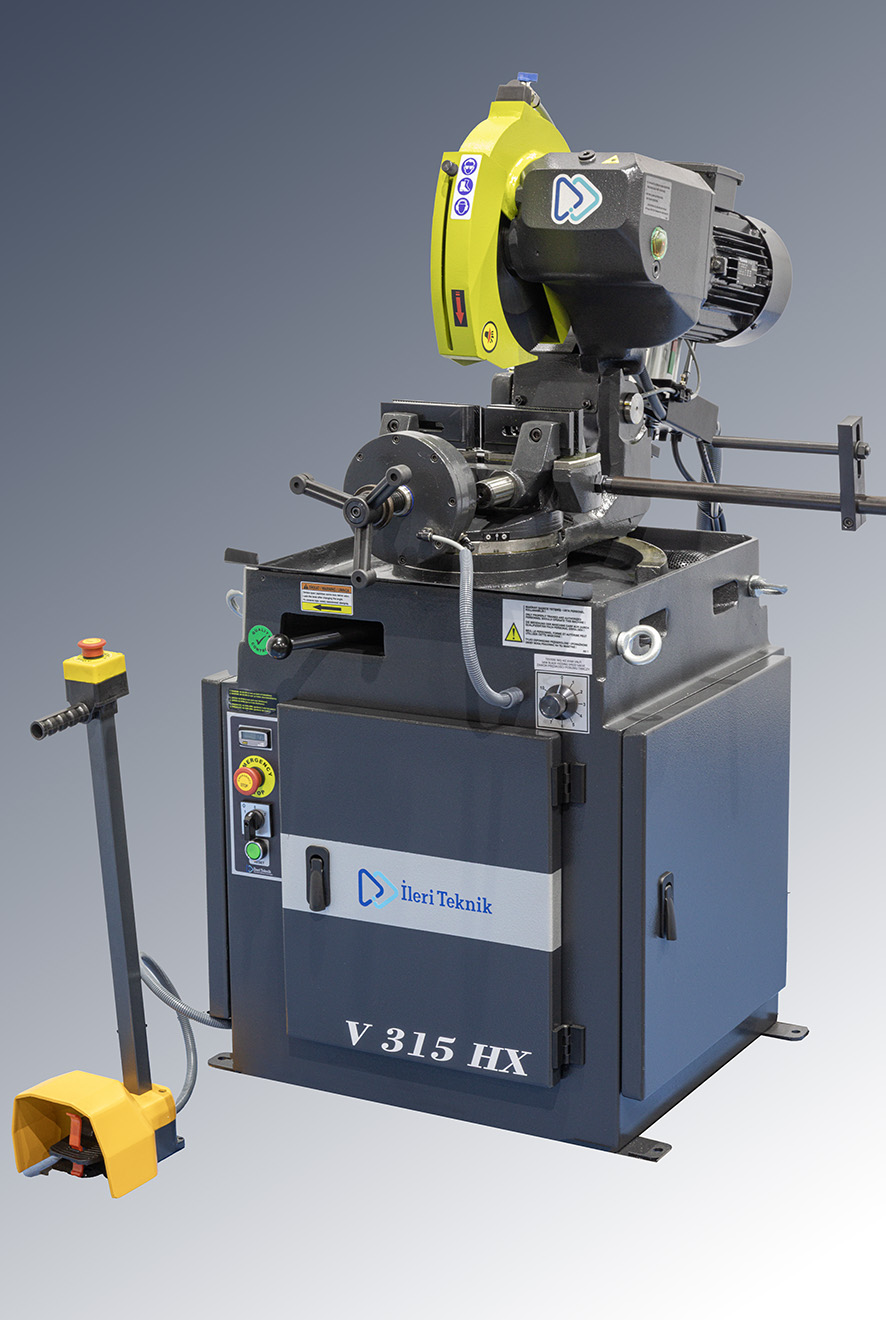

V 315HX Semi Automatic Circular Saw Machine
V 315HX Semi Automatic Circular Saw Machine
Product Overview
Semi-automatic heavy duty circular saw for fast cutting different size of metal pipes
Product Features
-
High production rates, ideal for short batch runs,
-

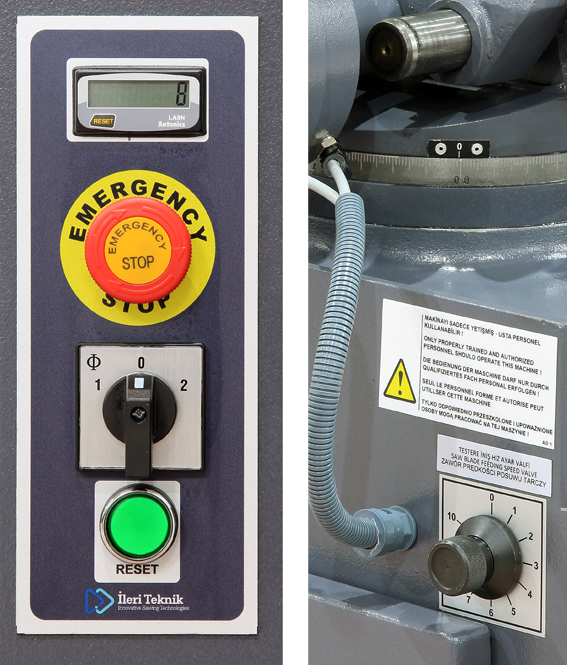

Foot switch actuation
-

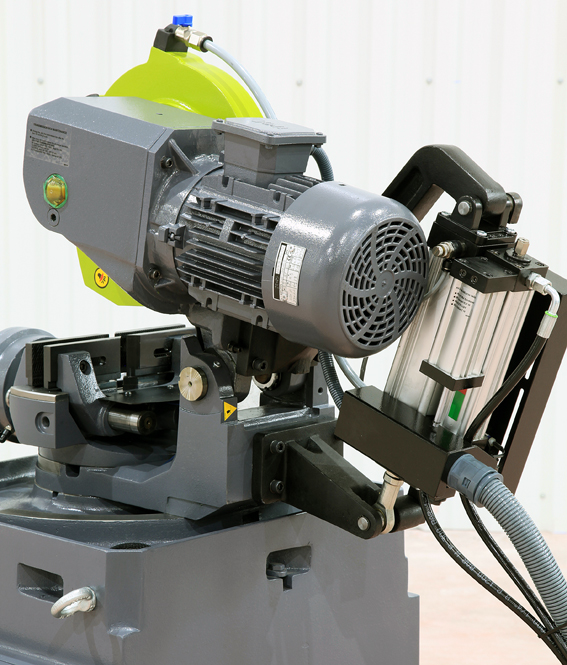

Hydro-pneumatic operation of saw head smoothes descent for optimum cut
-
Adjustable head stroke according to the dimensions of the material which has to be cut
-
45° right to 45° left cutting
-
Coolant tank and electric pump for blade lubrication and cooling
Product Specification
Cutting Capacity
| Maximum Saw Diameter | 315 mm |
| Saw Angle | 90° +/- 45° |
| Round Material Diameter (max.) | 105 mm 90 mm |
| Square Material (max.) | 85 x 85 mm 80 x 80 mm |
| Rectangular Material (Max.) | 120 x 60 mm 90 x 60 mm |
Technicial Specifications
| Main Voltage | 400 V |
| Control Voltage | 24 V |
| Installed Power | 4,7 kW |
| Current | 1, 85 A |
| Saw Engine | 1,3 - 1,8 kW |
| Boron Oil Pump | 0,06 kW |
| Air pressure | 6 kg/cm2 (240 l/min) |
| Saw Speed | 45 / 90 Dev. / Dak. |
| Angle Rotation | 90° / +/- 45° |
Saw Features
| Saw Diameter | 315 mm |
| Saw Bore Diameter | 32 mm |
| Pin Holes | 2 x Çap 11 |
| TiN Coating | Medium Hard Steel |
| TiCn Coating | High Stiffness Steel |
| TiAIN Coating | Stainless steel |
Dimensions
| Most | 1000 mm |
| Size | 600 mm |
| Height | 1400 mm |
| Net weight | 240 Kg |
| Gross weight | 260 Kg |
Product Attachements
| Attachment | Size |
|---|---|
| V 315HX.pdf | 7.9 MB |
