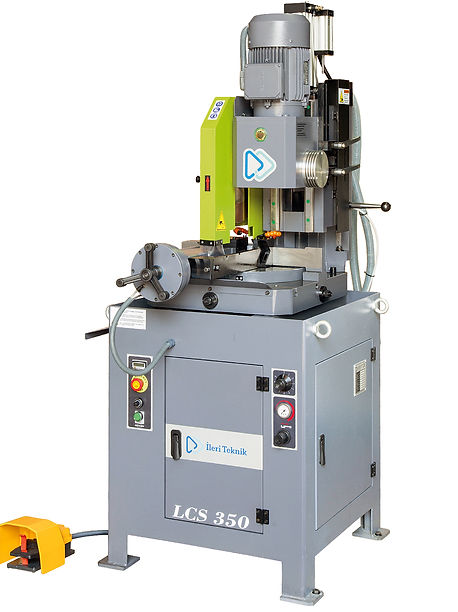

LCS 350 SEMI AUTOMATIC
CIRCULAR SAW MACHINE
LCS 350
Foot switch actuation
Hydro-pneumatic operation of saw head smoothes descent for optimum cut
Heavy duty, helical gear and worm gear sets in gearbox
Head descends on hardened linear guides
Back lash reduction for prolonged blade life
Easy, positive 0-45° right and 60° deg mitre left
Coolant tank with box to collect chips and electric pump for blade lubrication and cooling
Maximum Saw Diameter
350 mm
Saw Angle
90°
+/- 45°
+ 60°
Round Material Diameter (max.)
110 mm
110 mm
90 mm
Square Material (max.)
100 x 100 mm
90 x 90 mm
80 x 80 mm
Rectangular Material (Max.)
160 x 90 mm
120 x 80 mm
80 x 80 mm
Main Voltage
400 V
Control Voltage
24 V
Installed Power
3,1 kW
Current
7,6 A
Saw Engine
2,4 - 3 kW
Boron Oil Pump
0,06 kW
Air pressure
6 kg/cm2 (240 l/min)
Saw Speed
36 / 72 Dev. / Dak.
Saw Speed
90° / +/- 45° / + 60°
Saw Diameter
350 mm
Saw Bore Diameter
32 mm
Pin Holes
2 x Çap 11 / Pivot Center Çap 63
TiN Coating
Medium Hard Steel
TiCn Coating
High Hardness Steel
TiAIN Coating
Stainless steel
Most
1000 mm
Size
800 mm
Height
1800 mm
Net weight
460 Kg
Gross weight
480 Kg
LCS 350 TR1
LCS 350 TR2
LCS 350 TR3
LCS350 Catalog
Technical Data
